ProCo Rat R2DU Rackmount

1984 - 1988

During the rack effects boom of the 1980s, Pro Co introduced the R2DU, which was essentially two RAT circuits in a single rack space box. The two units could be used separately or cascaded together for a more powerful distortion. The R2DU included the RFS-2 dual footswitch for remote control of the unit.

Features:
Rackmount
Two Rats in one
Included RFS-2 dual footswitch
Each Rat could be used separately or cascaded
r2du and footswitch R2DU and RFS-2 footswitch
Bypass:

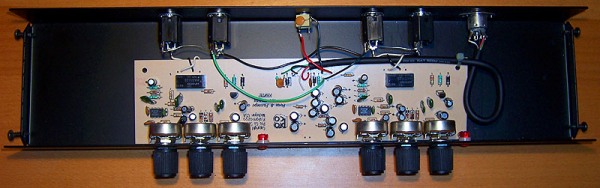

r2du inside Inside view

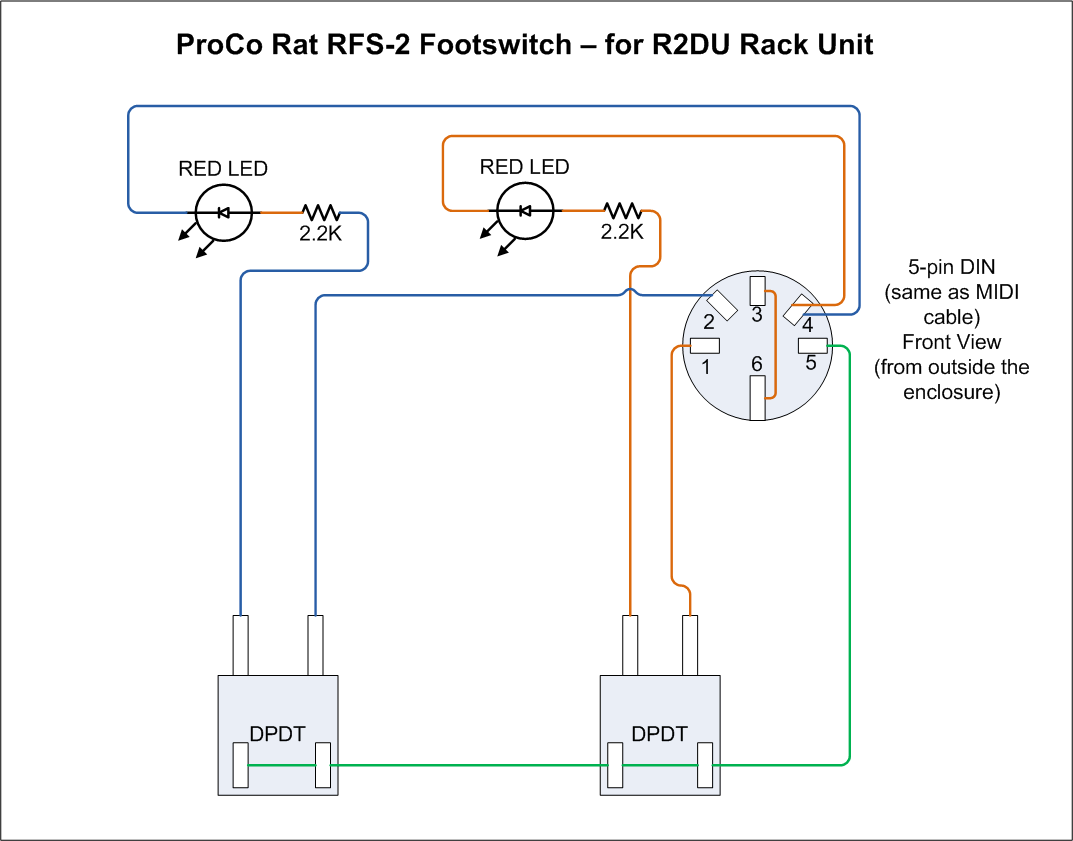

r2du footswitch schematic Footswitch scheme courtesy of beavisaudio.com



Manuals and Brochures Links:
Official Rat Distortion Site
Pot Date Codes ProCo Sound
Wikipedia Rat






Any pictures, additional information, or corrections to this Rat history project would be greatly appreciated. Use our contact form to submit any information.
